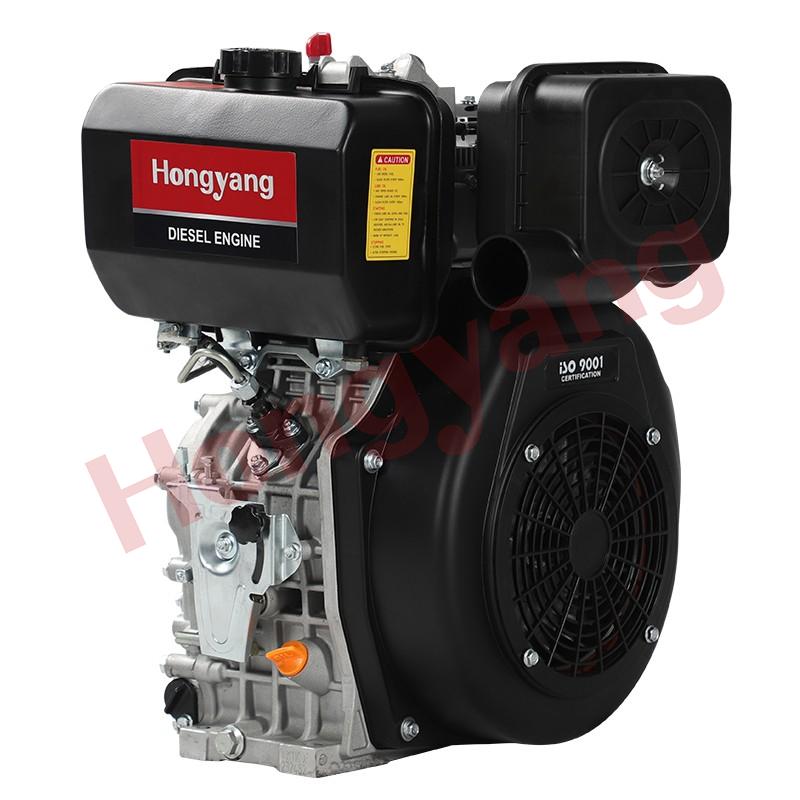

Hongyang HY1100DFE Diesel Engine
1.Rated Output:10.2kw@3000rpm 2.Displacement:660cc 3.Fuel Tank Capacity:6.5L 4.Electric Starter 5.Power Take Off: Crankshaft 6.Application:Generator, Agriculture Machinery, Construction Machinery, Boat etc
Product Description
| Model No: | HY1100DFE | |
| Type: | Air Cooled Single Cylinder Four Stroke Direct Injection Diesel Engine | |
| Bore*Stroke(mm) | 100x84 | |
| Displacement(cc): | 660 | |
| Compression Ratio: | 18:01 | |
| Rated Output: KW/HP | 10.2KW/14.0HP | |
| Roation Speed | 3000rpm | |
| Fuel Type: | 0# or -10# Light Diesel | |
| Fuel Tank Capacity: | 6.5L | |
| Lube Type | Above CD Grade or SAE 10W-30, 15W-40 | |
| Lube Capacity: | 1.8L | |
| Starting System: | Electric Starter | |
| Power-Take-Off | Crankshaft | |
| Net Weight: | 62Kgs | |
| Packing Dimension（LxWxH） | 525x490x595mm | |
