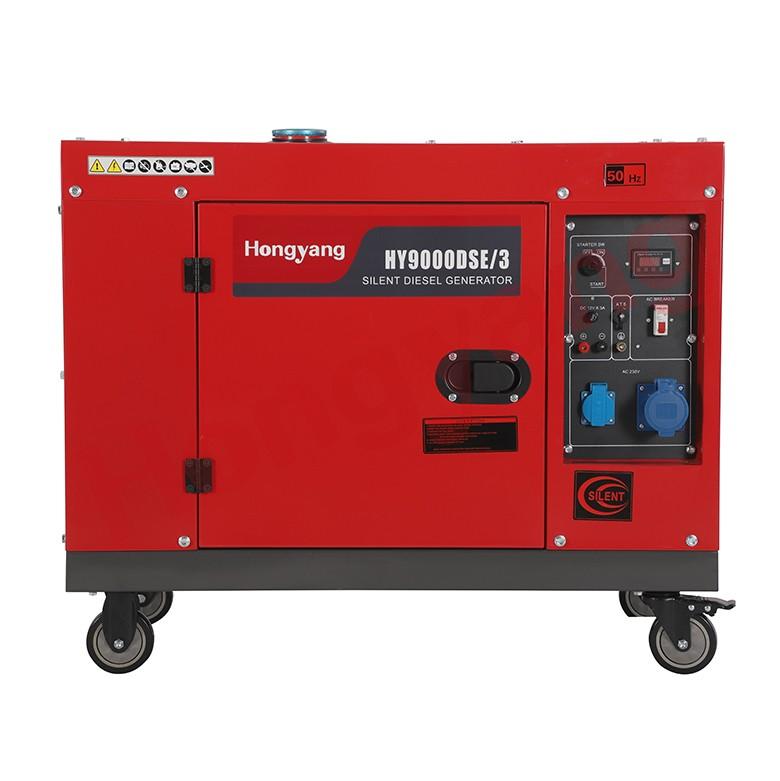

HY9000DSE Diesel Generator Set
1.Rated Output:6.5KW,Max Output:7.0KW. 2. Digital Control Panel,Electic Starter. 3.Powered by HY195DFE(531cc) Air Cooled Single Cylinder Diesel Engine 4. 100% Copper Core Alternator 5. 16L Fuel Tank 6. Application: Home Use, Outdoor Project , Shop, Factory etc.
Product Description
| Model No | HY9000DSE | HY9000DSE/3 | |||
Generator Set | Type | Silent Air Cooled Single Cylinder Diesel generator Set | |||
| Rated Output: | 6.5KW | 6.8KW | 6.5KW | 6.8KW | |
| Max Output: | 6.8KW | 7.2KW | 6.8KW | 7.2KW | |
| Frequency: | 50HZ | 60HZ | 50HZ | 60HZ | |
| Phase No: | Single Phase | Three Phase | |||
| Power Factor | CosΦ=1 | CosΦ=0.8 | |||
| Noise Level@7m(dB) | 72-75(dB) | ||||
| Fuel | 0# or -10# Light Diesel | ||||
| Fuel Tank Capacity | 16L | ||||
| Excitation Mode | Brush(AVR) | ||||
| Starting Type | Electric Starter | ||||
| Engine | Engine Model | HY195DFE | |||
| Engine Type | Air Cooled Single Cylinder Four Stroke Direct Injection Diesel Engine | ||||
| Bore*Stroke | 95x75(mm) | ||||
| Displacement | 531cc | ||||
| Rated Output: | 8.3KW | 9.0KW | 8.3KW | 9.0KW | |
| Rotation Speed: | 3000 RPM | 3600RPM | 3000RPM | 3600RPM | |
| Lube Type: | Above CD Grade or SAE 10W-30,15W-40 | ||||
| Compression Ratio | 19:01 | ||||
| Lube Capacity | 1.65L | ||||
| Packing | Net Weight | 165KGS | |||
| Gross Weight | 170KGS | ||||
| Packing Dimensions(LxWxH) | 990x565x760mm / 1140x570x760mm | ||||
