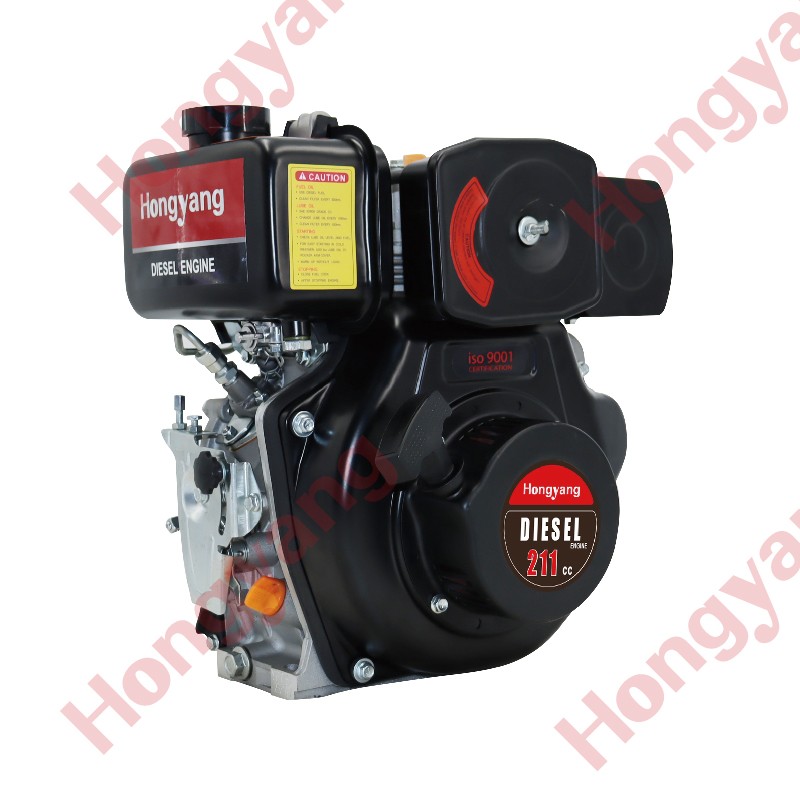

HY170DF Diesel Engine
Hongyang HY170DF Diesel engine is one air-cooled single-cylinder direct injection diesel engine is a reliable and efficient power source known for its exceptional performance and durability. 1.Rated Output:2.5KW/3.4HP 2. Roation Speed:3000rpm 3. Fuel Tank Capacity:2.5L 4. Power-Take-Off: Crankshaft
Product Description
| Model | HY170DF |
|---|---|
| Engine Type | Air Cooled 1 - Cylinder 4 - Stroke Diesel Engine |
| Bore*Stroke（mm） | 70*55 |
| Displacement（CC） | 211 |
| Compression Ratio | 20:01 |
| Rated Output（KW/HP） | 2.5/3.4 |
| Rotation Speed（RPM） | 3000 |
| Fuel Type | 0# or - 10#Light Diesel |
| Fuel Tank Capacity（L） | 2.5 |
| Lube Type | Above CD Grade or SAE10W - 30,15W - 40 |
| Lube Capacity（L） | 0.8 |
| Starting System | F:Manual Starter E:Electric Starter |
| Power - Take - Off | Crankshaft |
| Dimension（LxWxH）（mm） | 420x380x470 |
| Net Weight（Kgs） | F:27 FE:33 |
